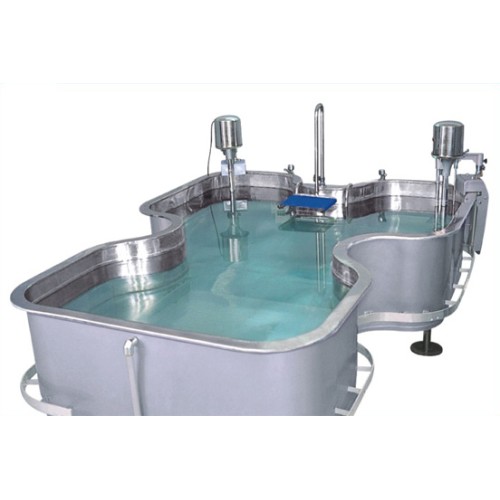

Designed for permanent installations with direct connections to drain, Hot & Cold water supply and overflow. Constructed of heavy gauge(14 & 16gauge) stainless steel sheet, electrically Argon welded tank is shaped to Butterfly modified figure. The shape & dimensions of the tank allows various arm & leg exercises to be carried out without hitting to the sides. The recessed areas at the head and sides of the bath provide good access for the therapist when monitoring & assisting the patient.

SPECIFICATIONS :

• Overall dimension. : 266cm x 196cm x 86cm high.



• Inside dimension. : Length to inset 218cm. Width upper part 183cm. Width of middle narrow part 89cm. Width of lower part 135cm. Depth is 56cm.



• Turbine Ejectors, Aerators & Carriages : TWO, with 1/2 h.p. motors. Ejectors with elevators on ball bearing carriages.



• Power Supply. : 220 V AC.



• Accessories. : One digital thermometer, 2 water inlets, drain and overflow pipes with all necessary fitting. Adjustable Head-Rest, Body Stretcher and Sitting seat fitted with nylon cloth.



• Finish. : Tank is finished bright inside and painted outside.

Note : A separate room or hall is required for this unit with 220V AC power and hot & cold water supply with drainage.
